Description

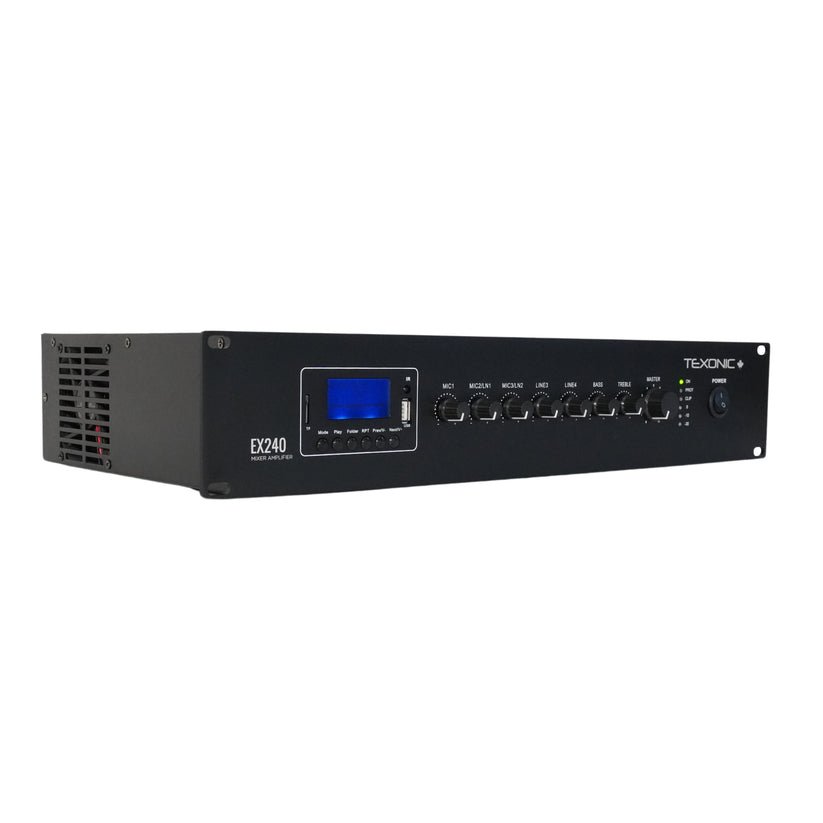

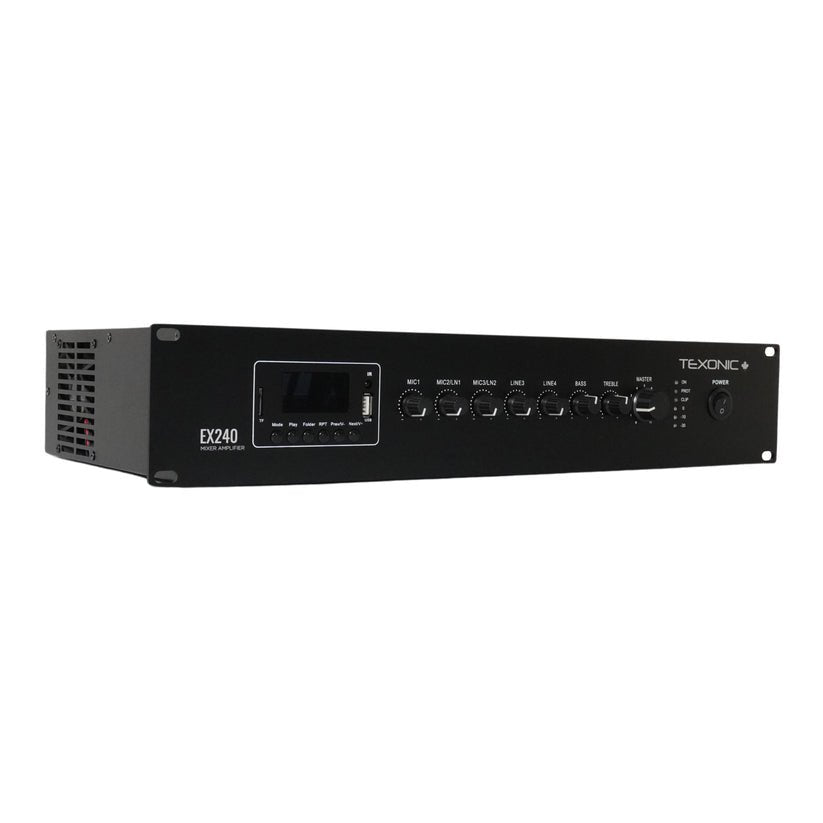

TEXONIC EX240 Tuner Commercial Amplifier
The EX240 Amplifier is specifically designed to function for a variety of places such as retail stores, pubs, spas and etc. With the ability to project announcements and play background music, this amplifier is everything you need to create a comfortable environment for your clients.
FEATURES
-
240W Rack-Mountable Mixer Amplifier: Ideal for background music and paging systems.
-
Versatile Speaker Compatibility: Supports 100V, 70V, and 4-8-16 Ohm speaker outputs.
-

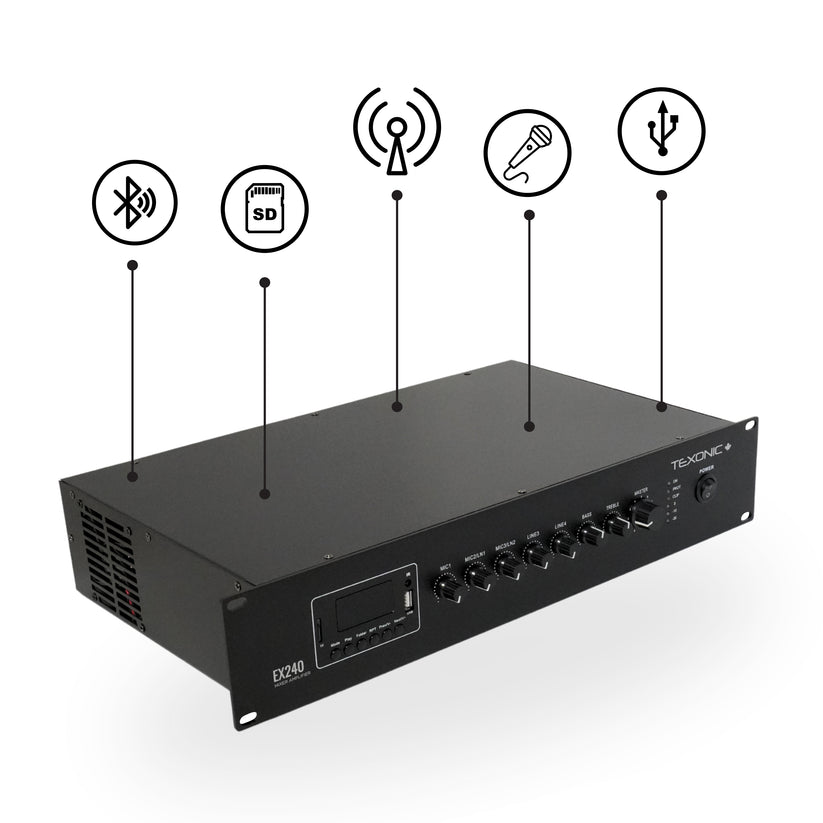

Integrated Media Player: Includes an MP3 player with USB/SD inputs, FM radio, and Bluetooth connectivity.
-
Convenient Remote Control: IR remote for MP3, FM, and Bluetooth operation.
-
Status Indicators: LED indicators for power, clipping, protection, and signal presence.
-
Priority Microphone Input: Mic1 features an XLR input, phantom power, and highest VOX priority.
-
Flexible Inputs: Two additional Mic/Line inputs with switchable 6.3mm jacks.
-
RCA Connections: Two RCA line inputs and one RCA line output for added versatility.
-

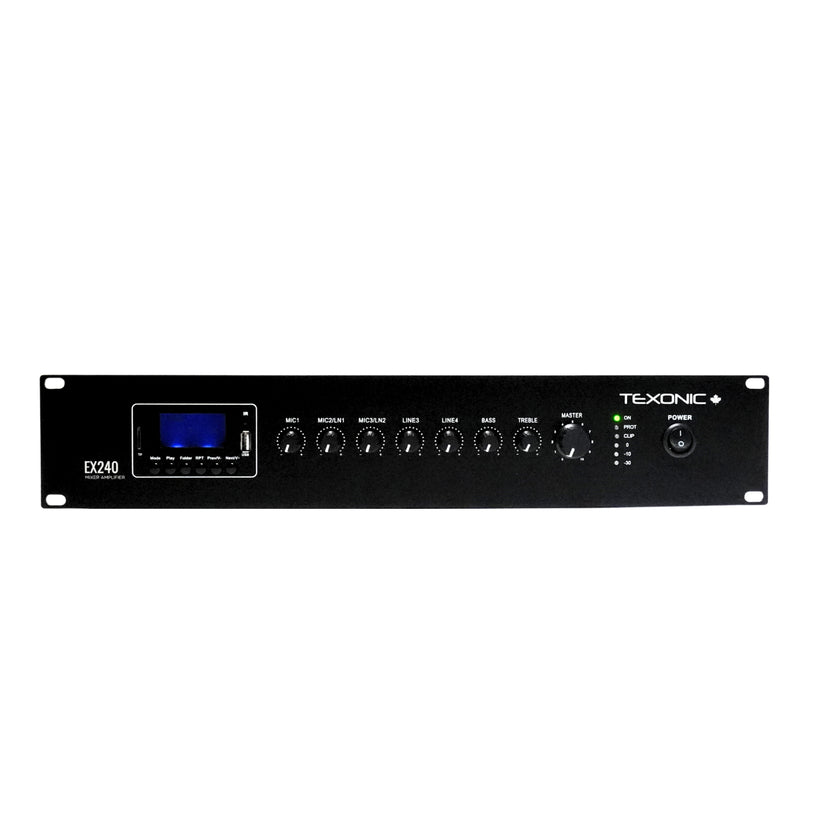

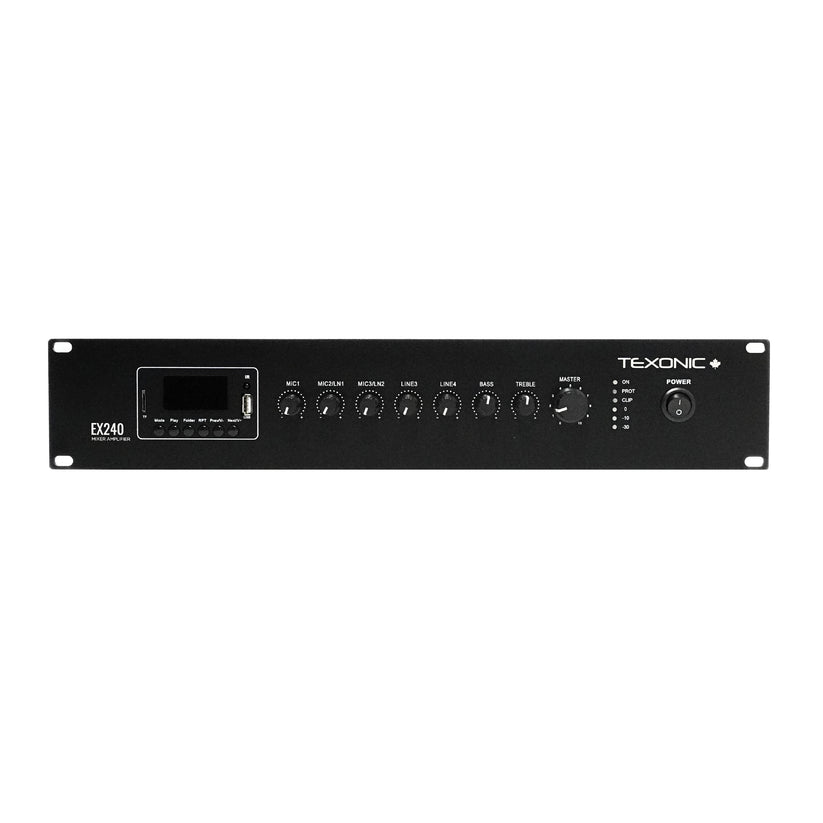

Customizable Audio Controls: Independent controls for microphones, line inputs, bass, treble, and master volume.
-
Built-In Protection: Safeguards against short circuits, overload, clipping, and overheating.
SPECIFICATIONS
-
Rated Power Output: 240W
-

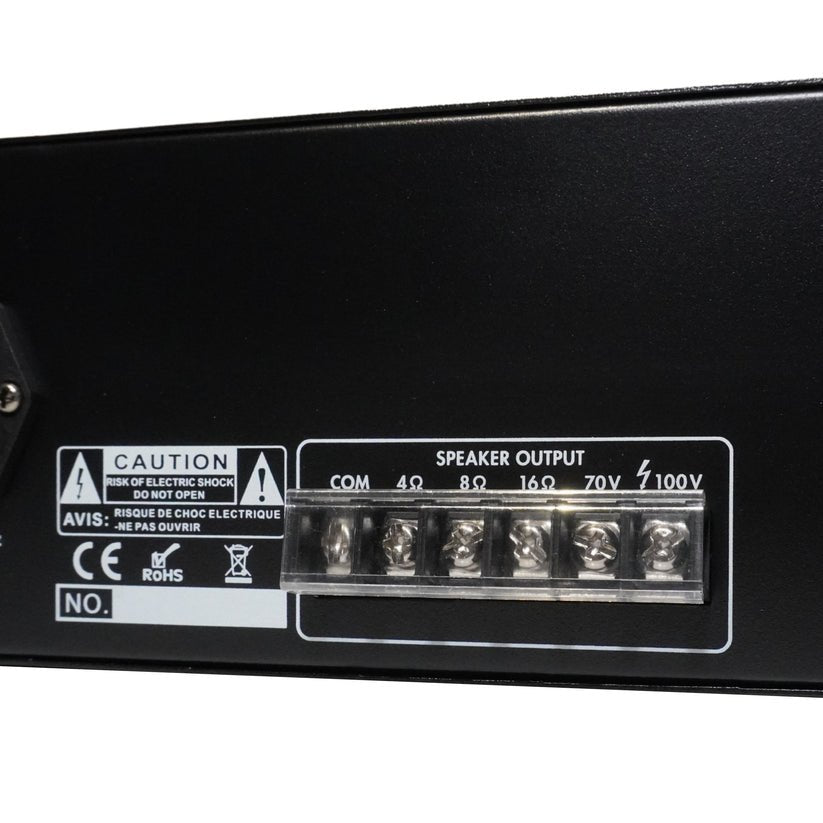

Speaker Outputs: Compatible with 70/100V, 4 Ohm, 8 Ohm, and 16 Ohm systems
-

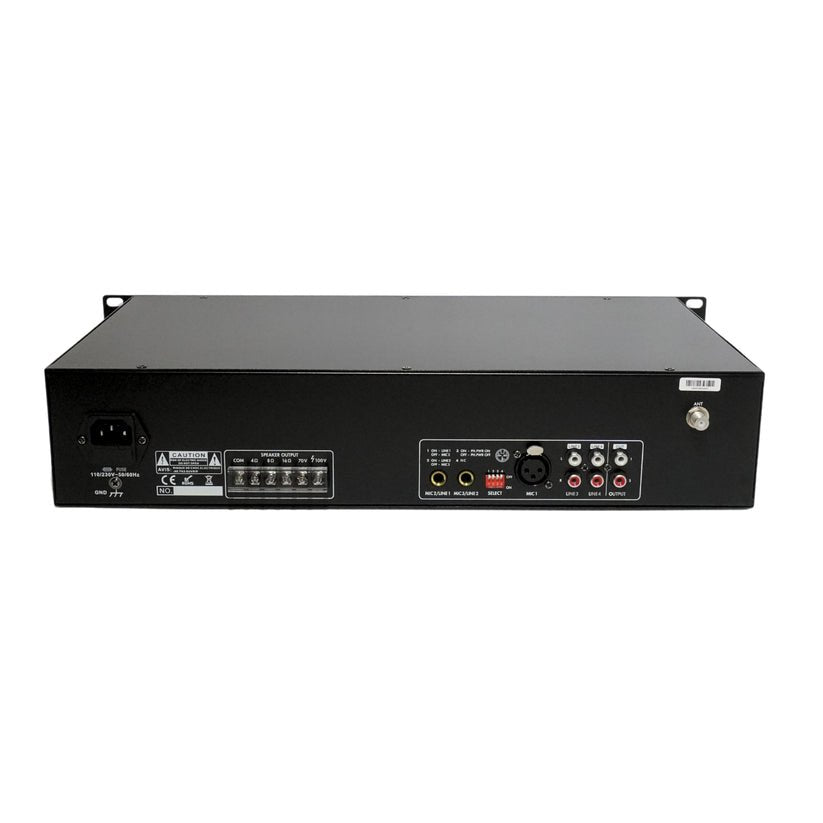

Connectors:
-
Mic 1 Input: Balanced XLR with phantom power and VOX priority
-
Mic/Line Inputs 2-3: Switchable, unbalanced 6.3mm jack
-
Line Inputs 1-2: RCA connectors
-
Line Output: RCA connector
-
Input Sensitivity and Impedance:
-
Mic Inputs (1-3): 5-8mV, 600Ω
-
Line Inputs: 150-470mV, 10kΩ (unbalanced RCA)
-
Line Output Level: 0.775V (0 dBV)
-
Frequency Response: 60Hz to 15kHz (±3dB)
-
Signal-to-Noise Ratio:
- Line Inputs: ≥ 85dB
- Mic Inputs: ≥ 72dB
-
Total Harmonic Distortion (THD): Less than 0.5%
-
Protection Features: Short-circuit, clip, overload, and high-temperature protection
-
Power Consumption: 310W
-
Power Supply: 110VAC, 50-60Hz
-
Dimensions: 48 x 40 x 9 cm (19.05 x 15.94 x 3.46 inches)
-
Weight: 8.6 kg (18.95 lbs)
GENERAL
- Heavy-Duty 19-Inch Rack-Mountable Amplifier.
INCLUDED
- Instruction Manual
- 1 x BRAND NEW BX120T
- Indoor FM Antenna
- AC Power Cord
