Description

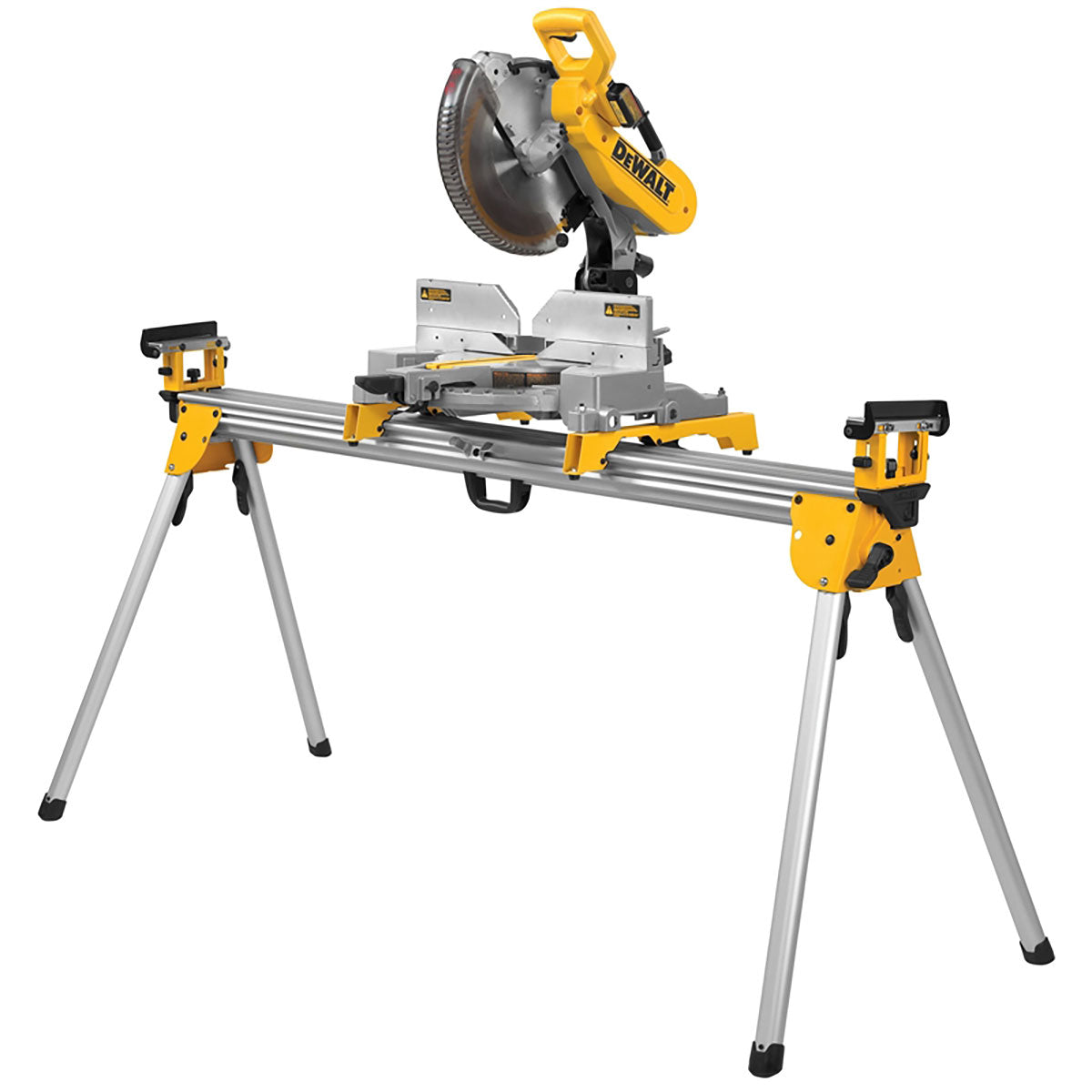

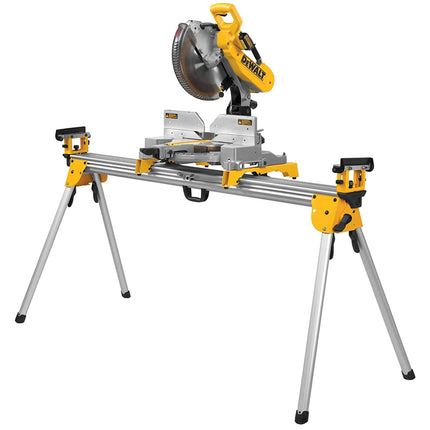

DWS780:
Integrated cutline blade positioning system provides adjustment free cut line indication for better accuracy and visibility
Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
Super-efficient dust collection system captures over 75% of dust generated
Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
Cuts up to 2 x 14 dimensional lumber at 90° and 2 x 10 at 45°
Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
Miters 60° to the right and 50° to the left providing increased capacity
Bevel 49° to the right and left for maximum versatility.
Oversized bevel scale makes bevel angle adjustments accurate and easy
Cam lock miter handle with detent override deliver quick and accurate miter angles
DWX723:
Lightweight aluminum construction (29 lbs.) allows for easy transport to and from the jobsite
5-1/2′ beam extends to support up to 16 ft. of material and up to 500 lbs.
Legs provide superior support and fold for easy storage
Leg Lock Levers allow for fast and easy set up
Miter saw mounting brackets allow easy and secure mounting of miter saw to stand
Work stops/supports can be repositioned quickly anywhere along the rail
Non-marring feet on tool mount will not scratch material
Extension lock levers allow for fast and secure tightening of extensions
